Commercial Roller Shutters

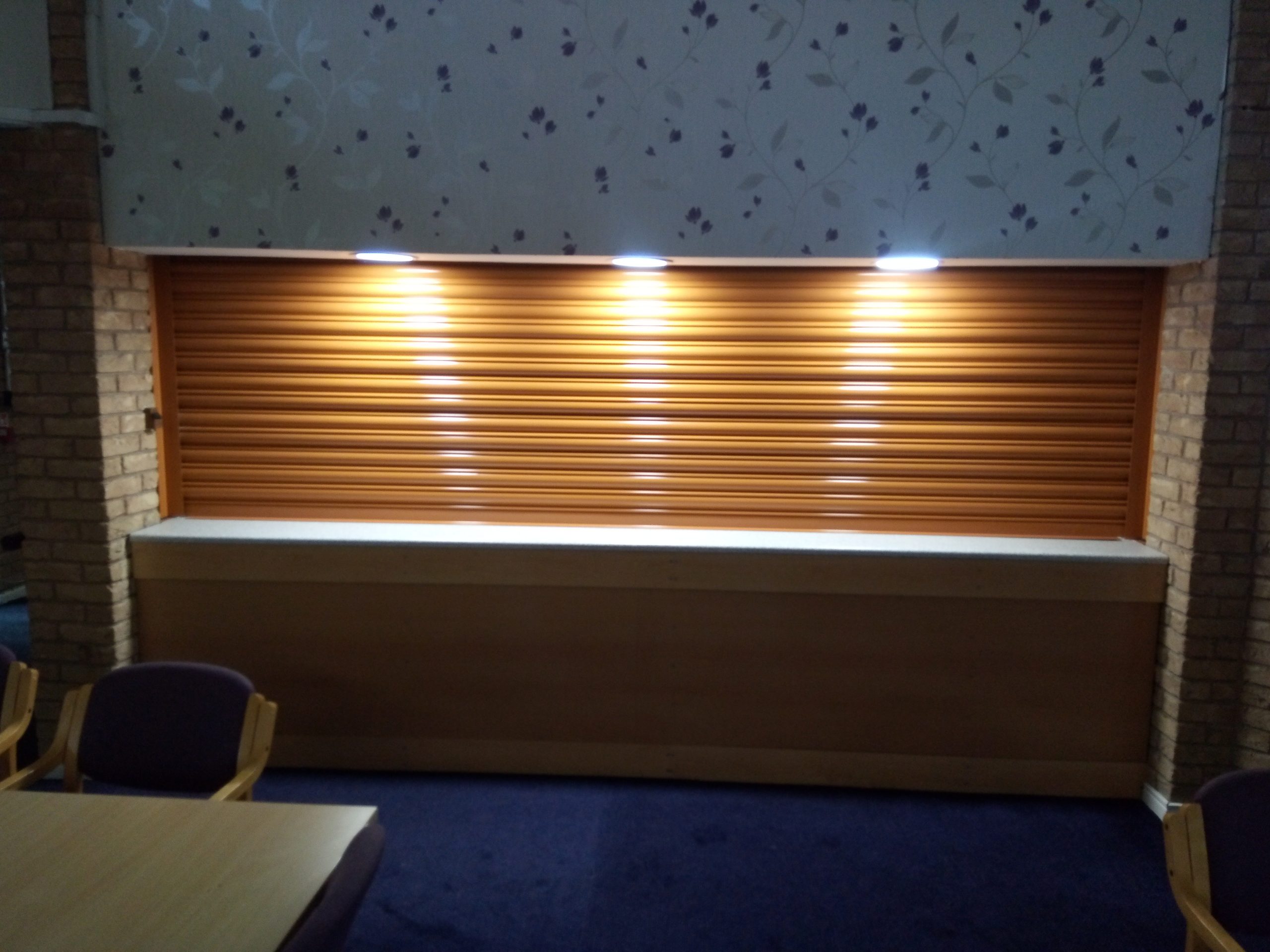

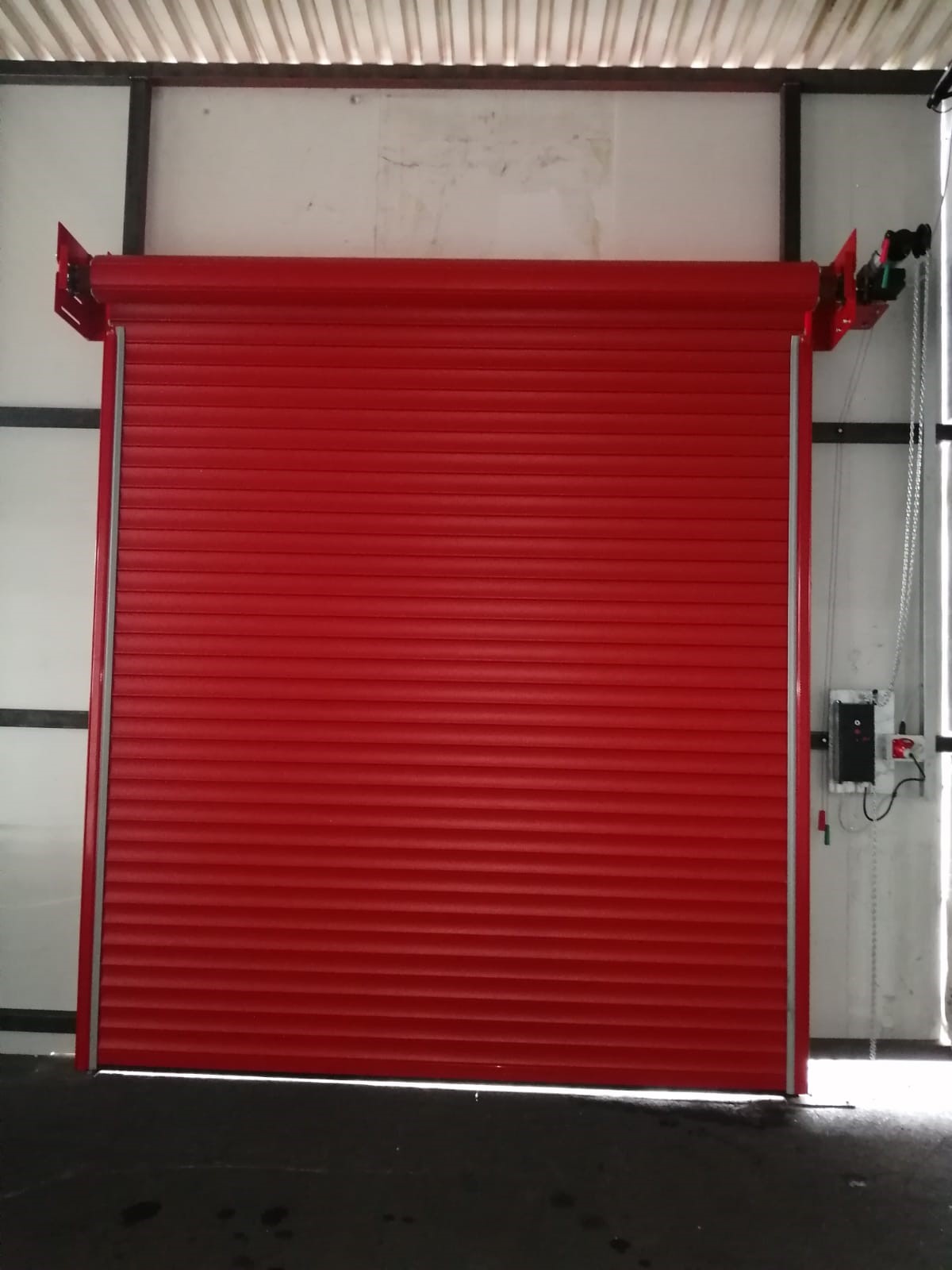

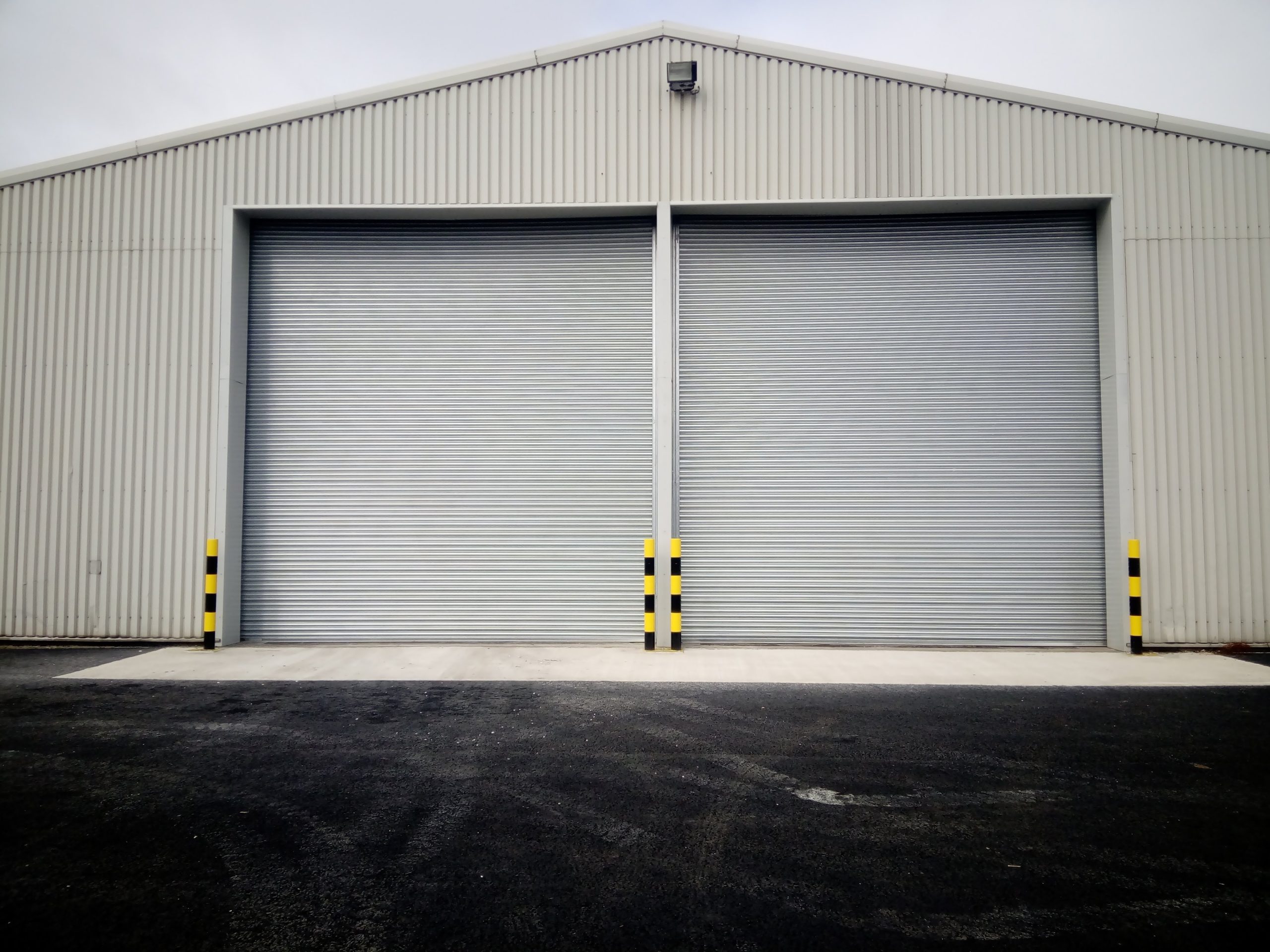

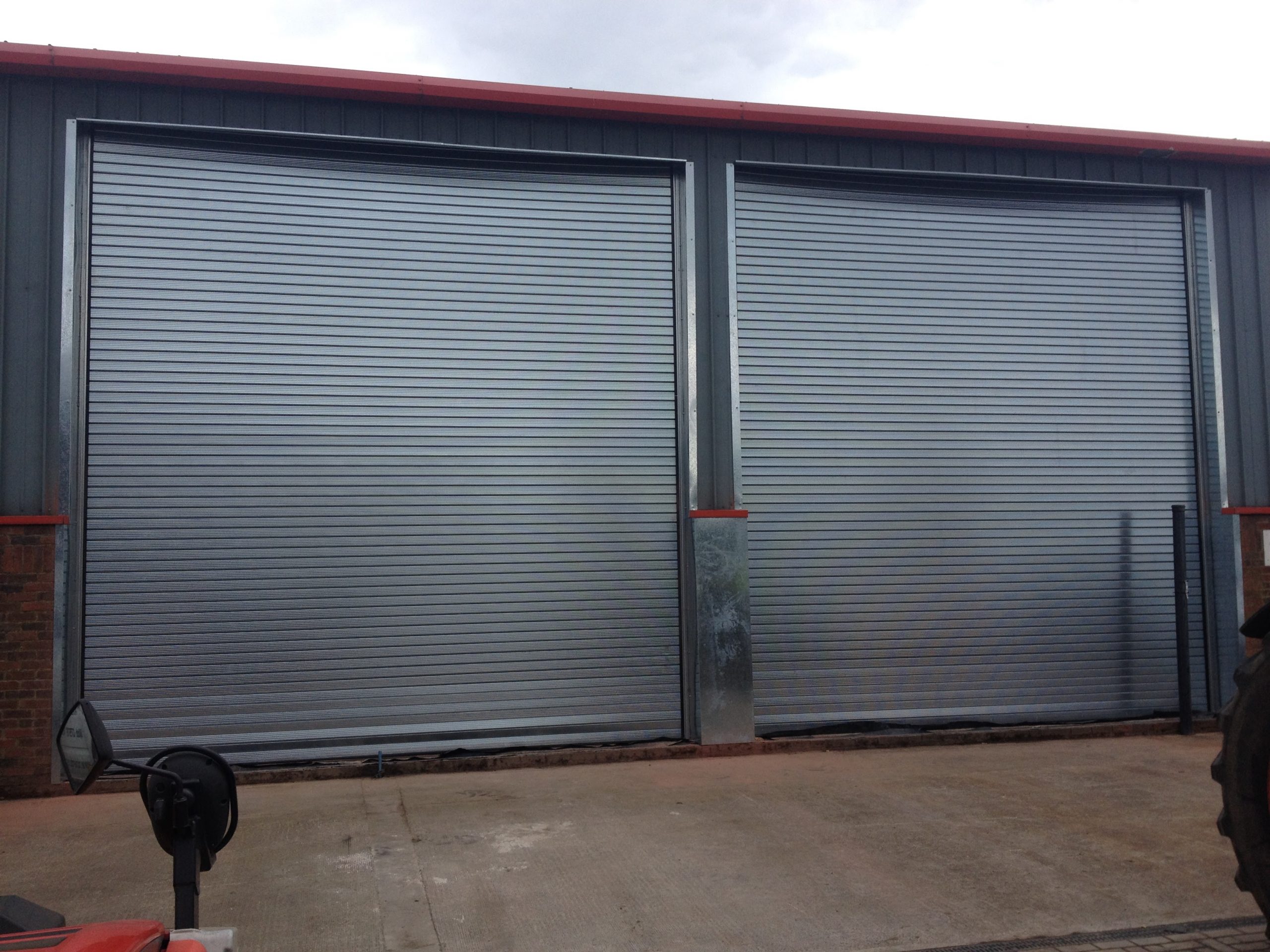

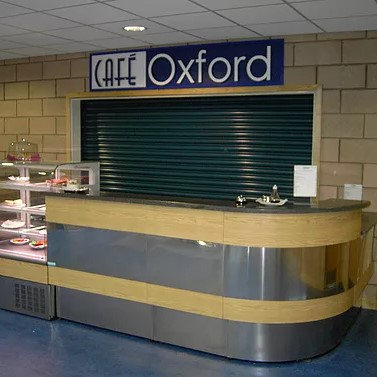

The Marian Security roller shutter range is designed to give total entrance and window protection while maintaining a high level of finished appearance.

Dimensions:  To suit openings up to 8000mm Wide x 4000mm High

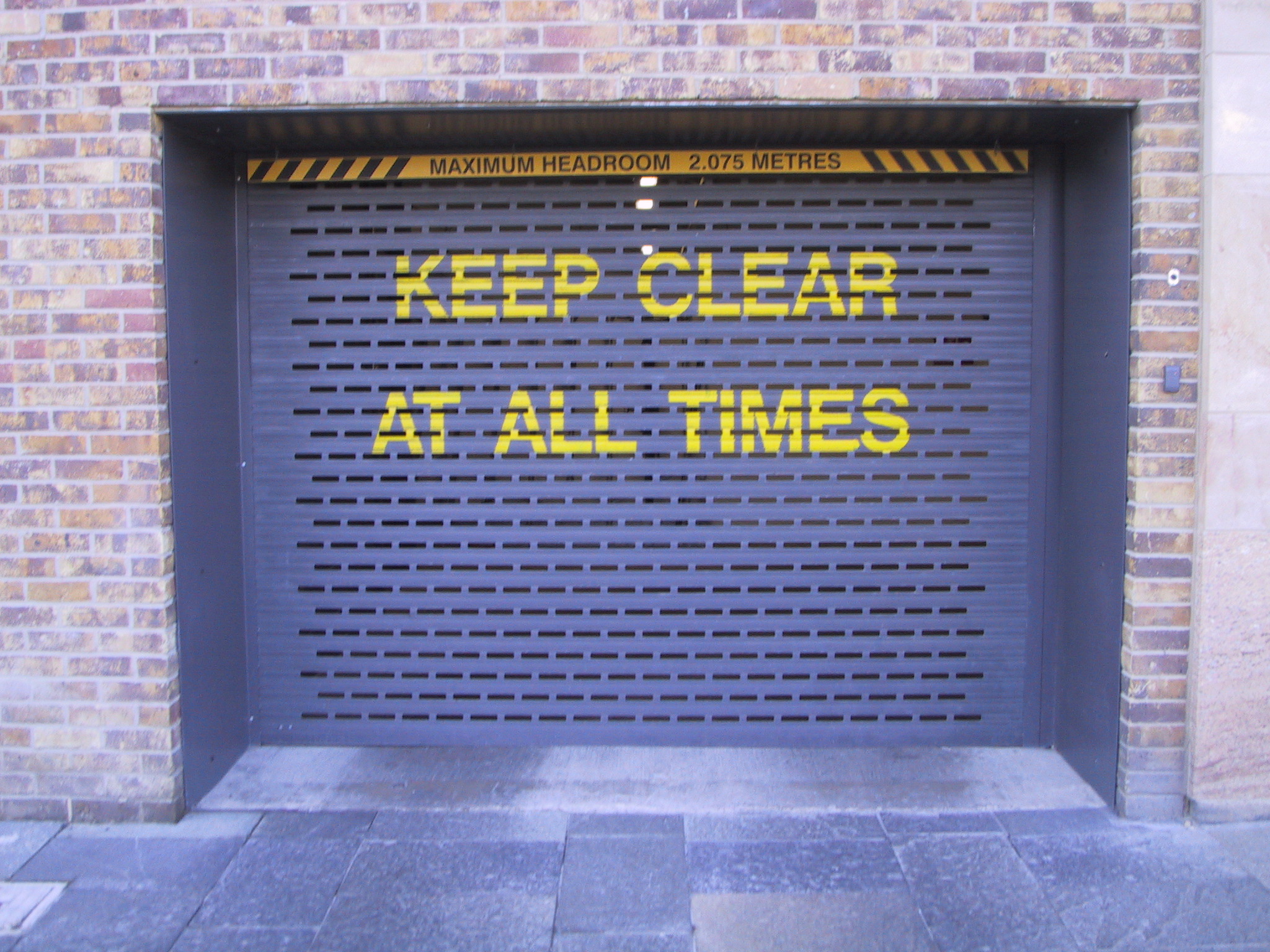

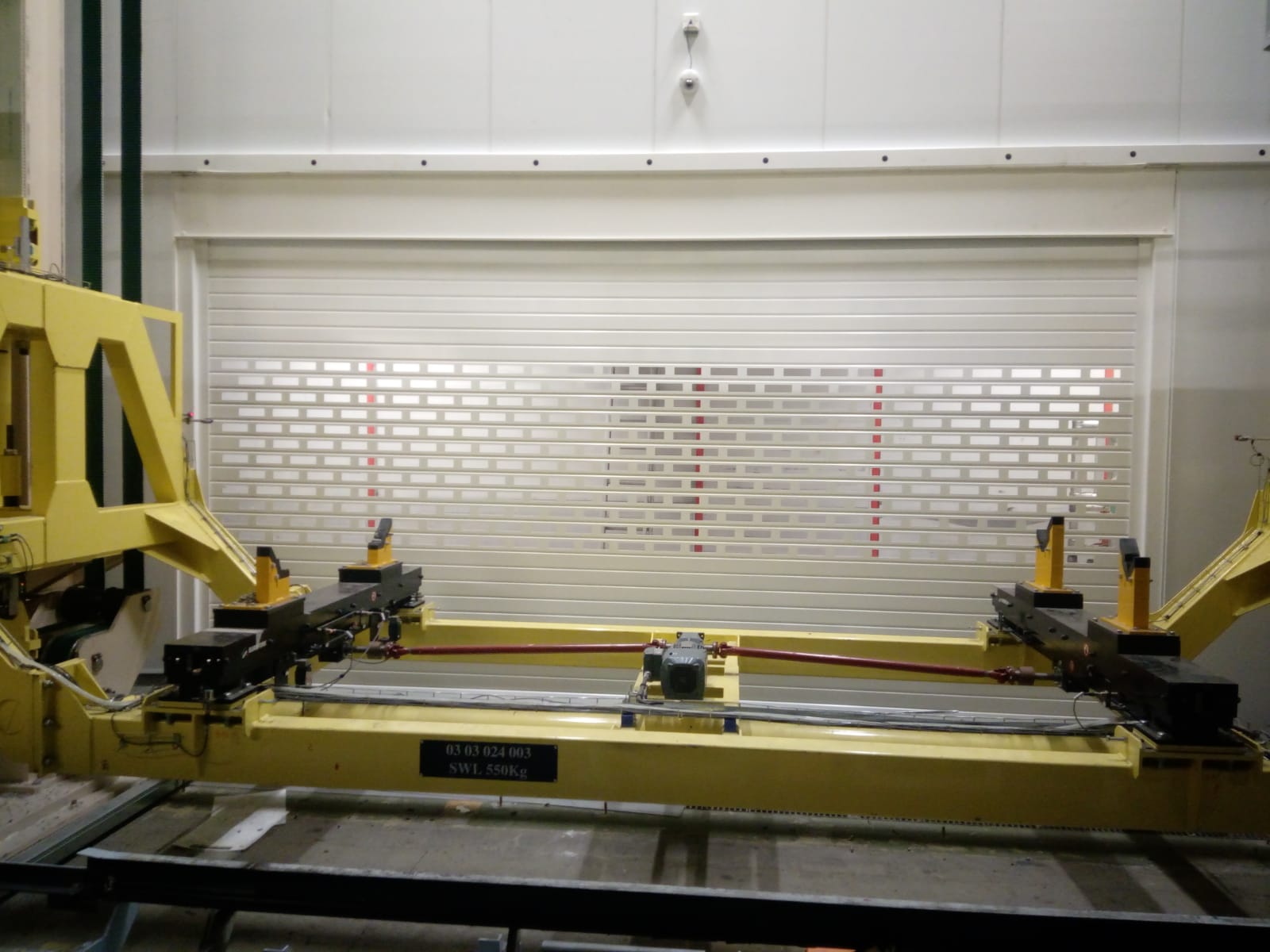

Curtain:  Constructed from scrolled steel 75mm deep interlocking sections with nylon end locks to reduce operational noise and minimise wear. The curtain is also available in 50mm wide with flat profile for smaller openings. Optionally a perforated curtain can be provided to give a transparent effect whilst maintaining a high level of security. Brick bond punched profile (glazed or unglazed) is also available.

Guides: Galvanised steel U channels secured to the structure with appropriate fixings, the channels range from 50mm to 100mm in depth and are sized to suit the opening and wind conditions.

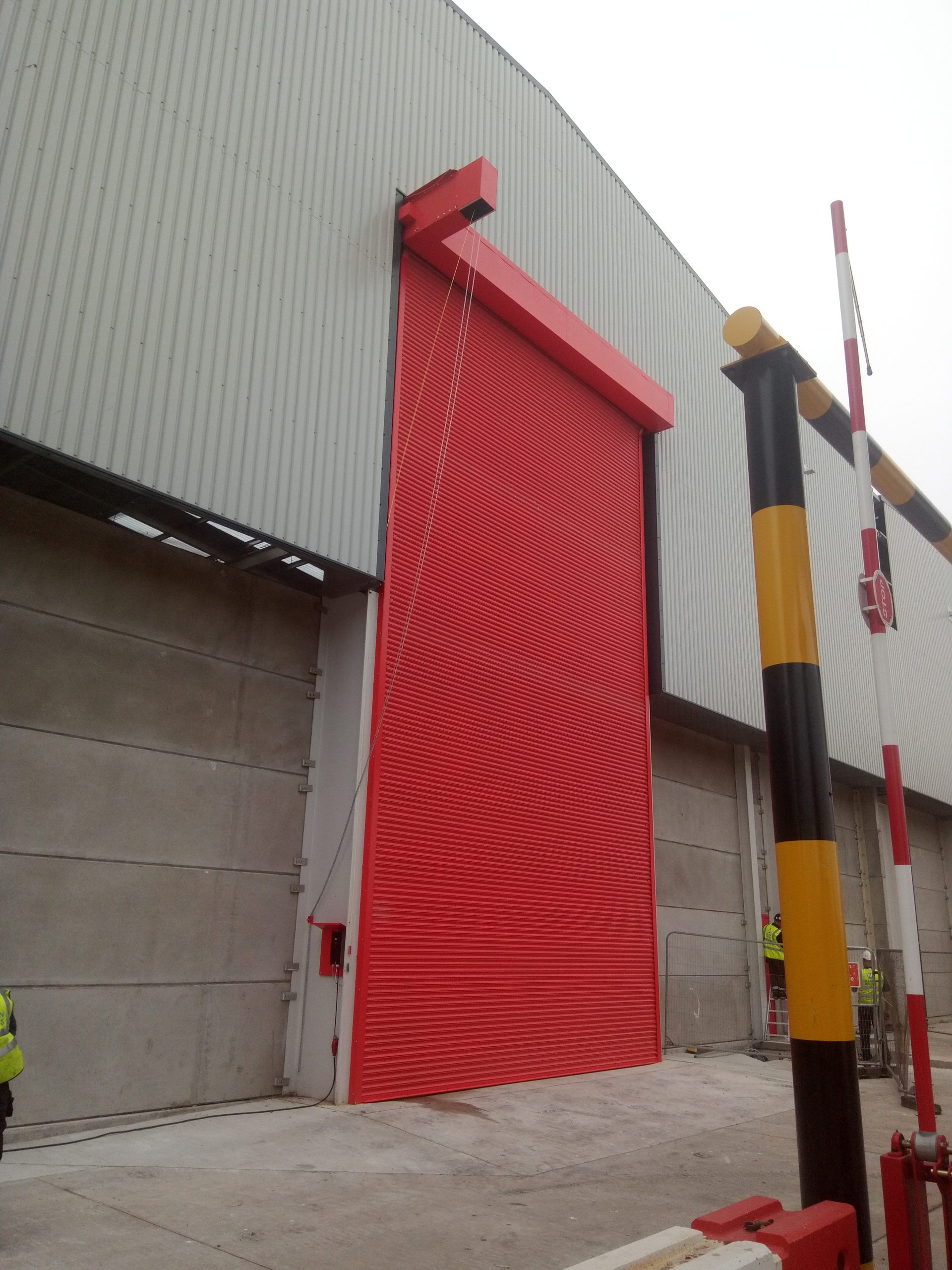

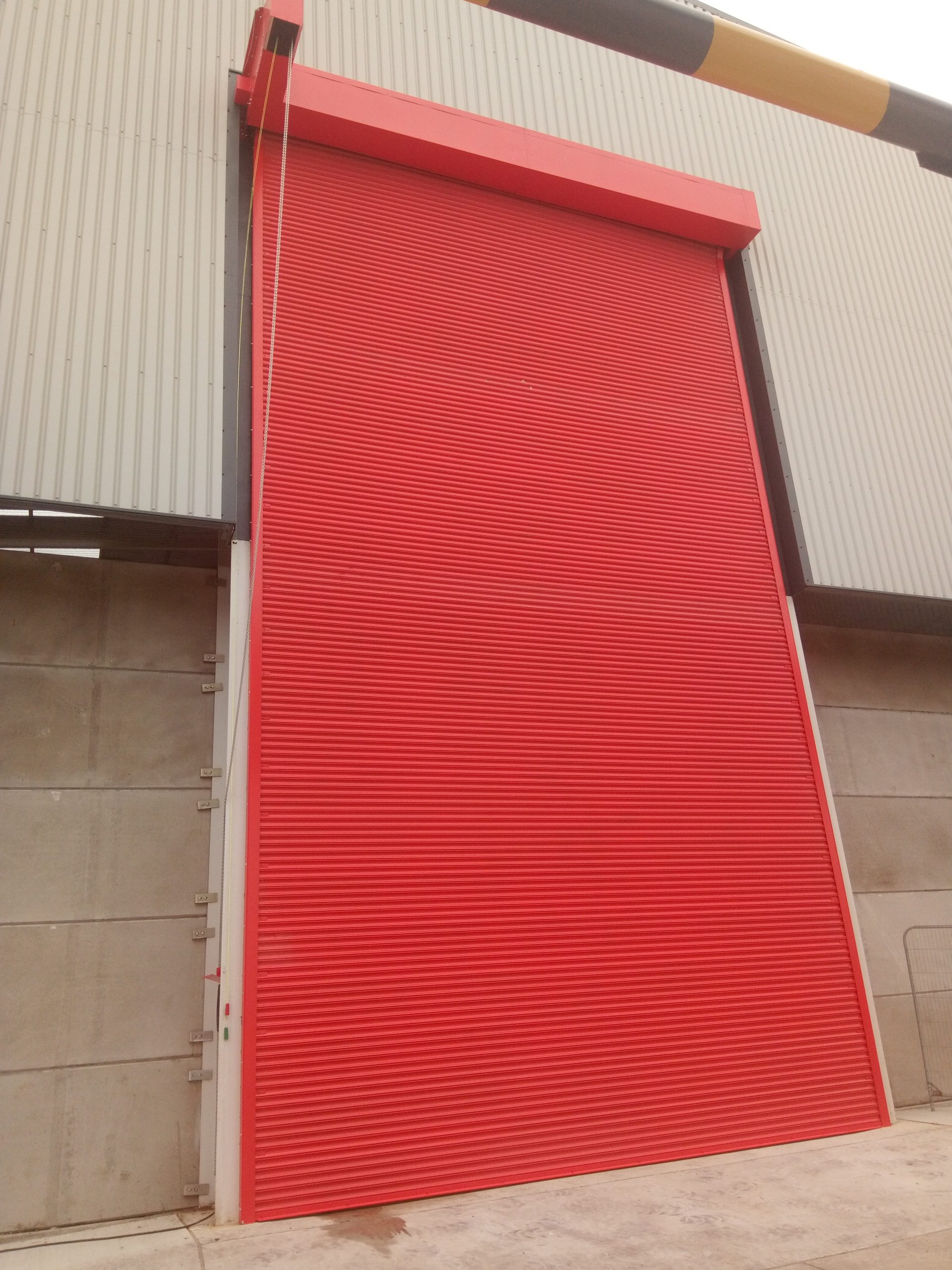

Hood:  Galvanised sheet steel hood to enclose the shutter curtain at the head of the opening.

Operation: Manual push up control is available for smaller sizes, alternatively electric operation is available with a single phase 230V AC tubular motor.

Control:  Provided with a sprung rocker switch for opening / closing, optionally a security key switch can be provided or a remote control receiver with multiple handsets. Bespoke control can be designed to operate groups of shutters via a building management system.

Safety: Designed in accordance with European Standard 13241-1, the shutters are provided with a safety brake as standard and a safety photocell and safe edge where necessary.

Finish: All visible parts can be powder coated to a huge range of standard RAL and BS colours. Textured coatings are available.
