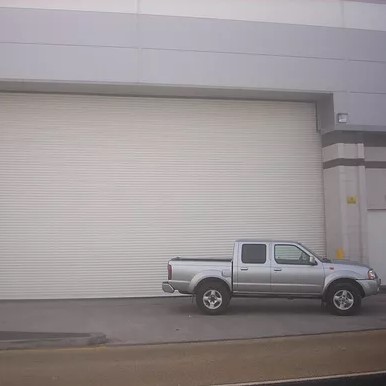

Industrial Duty Roller Shutters

The Marian Industrial Duty Roller Shutter range is designed to give strong and efficient security and environmental protection in the industrial and commercial situation.

Dimensions: To suit openings up to 15000mm Wide x 15000mm High

Curtain: Constructed from heavy duty scrolled galvanised steel 75mm deep interlock8ing sections with tough malleable iron end locks to prevent excessive wear. The curtain is designed to withstand wind loads in accordance with BS EN 12424 and has been tested up to level 5 wind classification (1250Pa+).

Guides; Heavy duty steel U guide channels are provided. Guides depths range from 75mm deep to 200mm deep and are sized to suit the opening and required wind resistance.

Hood: Optional galvanised sheet steel hood can be provided to enclose the coil at the head of the opening.

Operation: Manual chain operation or electric operation with a 415V AC direct drive electric operator.

Control: Internal 3 push button station for basic open / close operation. Optional automatic opening and timed return by induction loop embedded in the floor or high level passive infra-red detector. Provided with a low level 3 push button 415V AC starter for connection to a 415V red 5 pin 16 amp euro socket at low level. Hand held or vehicle mounted remote control operation is available.

Safety:  Designed in accordance with European Standard 13241-1, the shutters are provided with a safety brake as standard and a safety photocell and safety edge where necessary.

Finish: All visible parts can be powder coated to a huge range of standard RAL and BS colours. Textured coatings are available.
